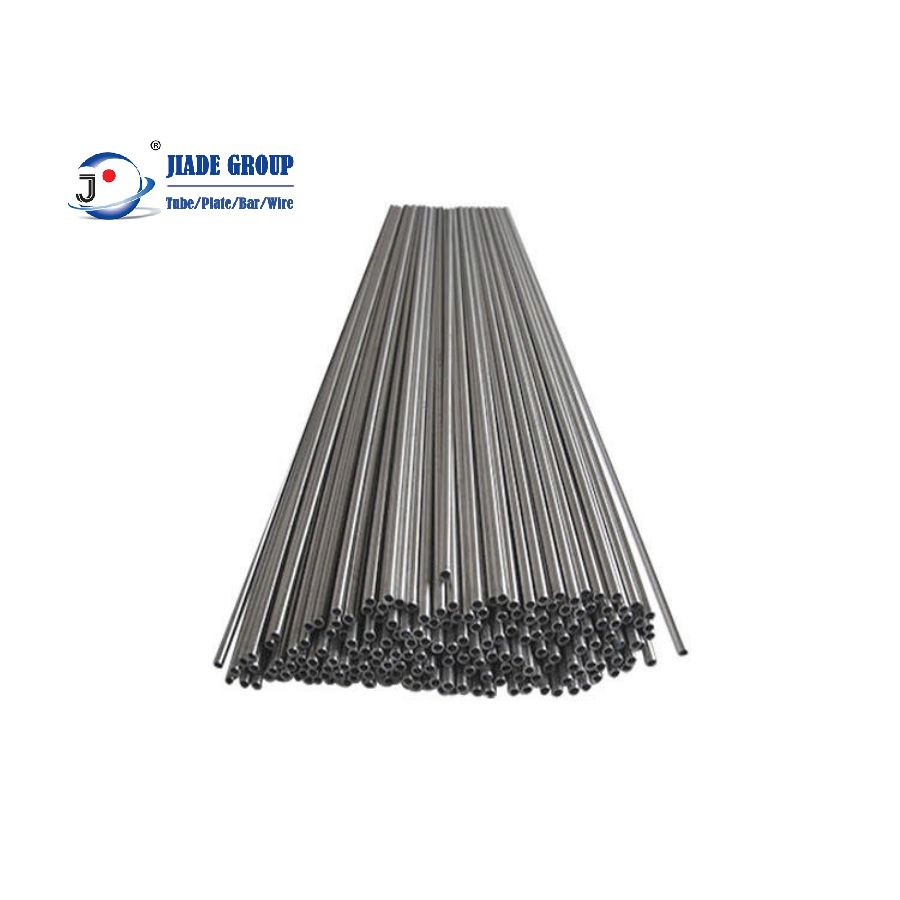

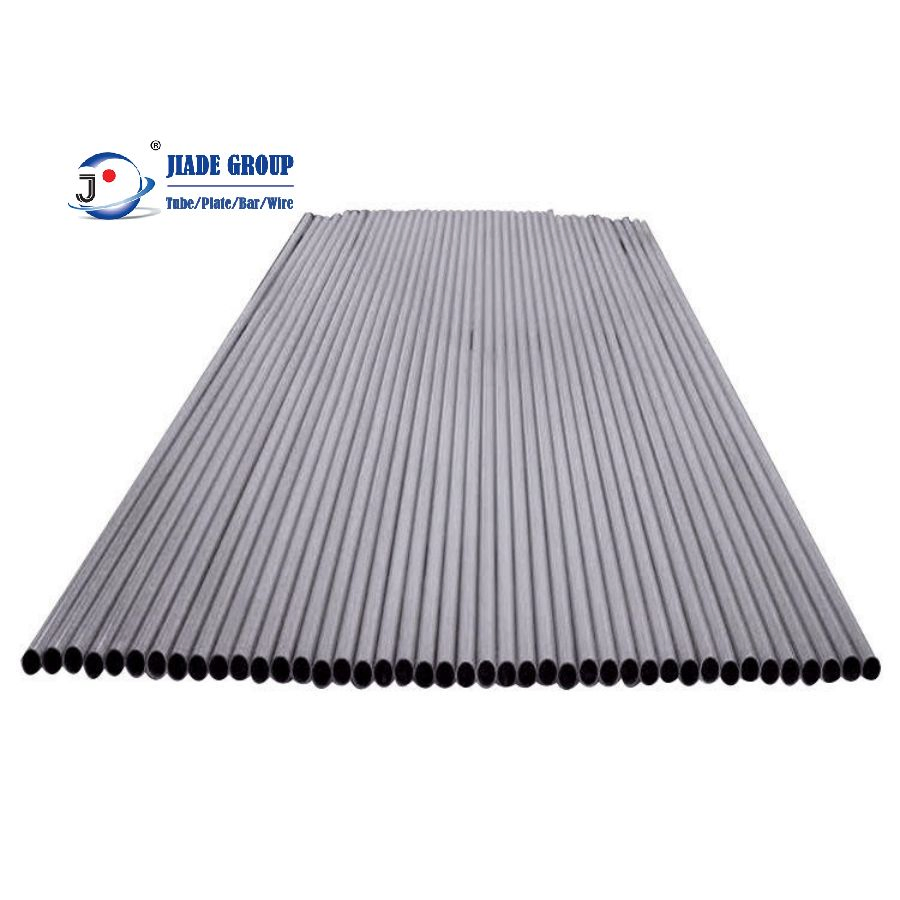

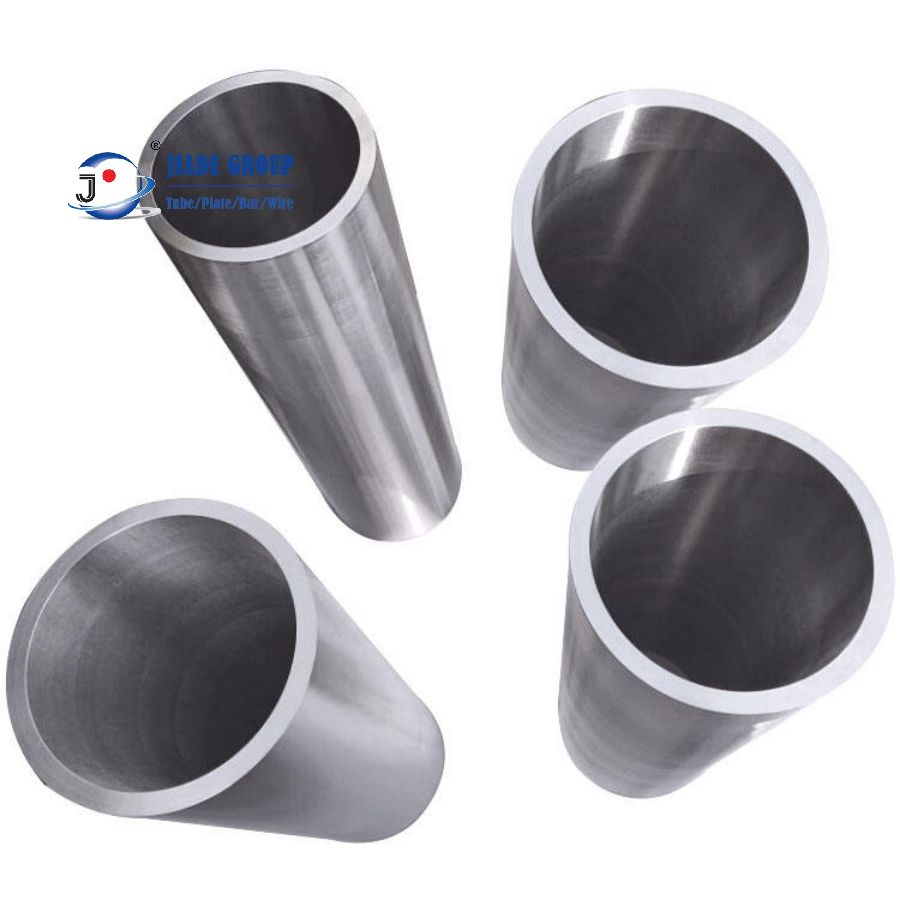

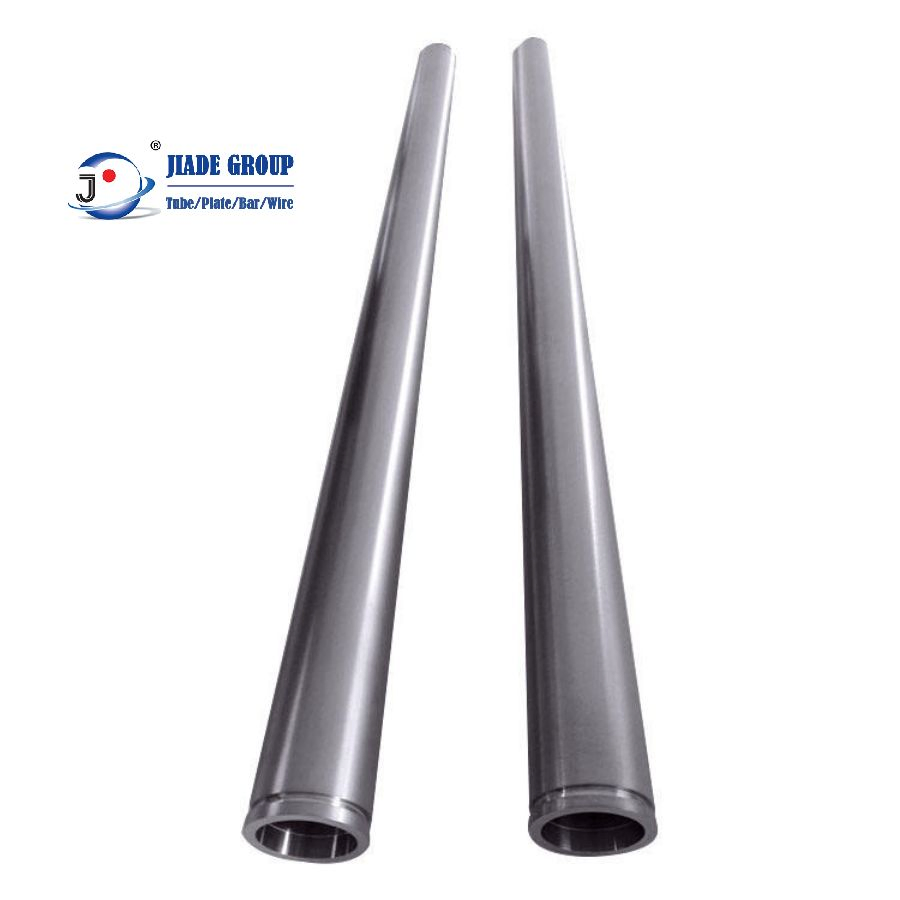

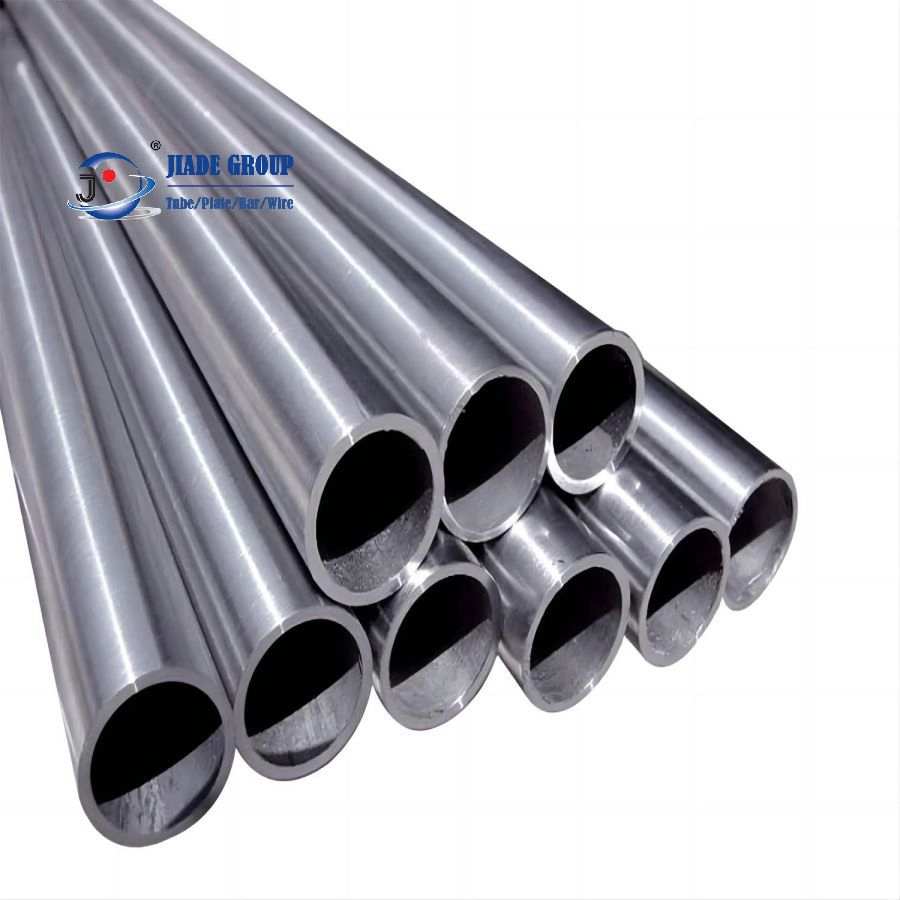

Titanium and its alloys are high-performance metals capable of withstanding extremely high temperatures. Specification ASTM B338 covers approximately 28 grades of titanium alloys. The titanium tubing defined by this specification is widely used in heat exchangers, surface condensers, and evaporators.
Key Applications: High-temperature environments where longevity and excellent performance are critical. Components are available in both seamless and welded constructions.
Seamless tubes are produced from hollow billets through cold reducing or cold drawing processes. Welded construction utilizes an automatic arc weld process, followed by adequate cold working to transform the cast weld microstructure into a conventional equiaxed microstructure via heat treatment.
| Grade | International Specifications |
|---|---|
| Ti CP-GRADE 2, 3, 4 | AMS-4941, 4942, BMS-7-21, DMS-1872, 1874, 1898 |
| 3AL-2.5V | AMS-4944, 4943, 4945, DMS-2241, B50TF35, PWA-1260 |
| Titanium Tubing Specs | AMS 4935, DMS 1650, MIL-T 9047, MIL-T 81556, MMS 1202, AIMS 03-18-011 |
| Property | Standard Details |
|---|---|
| Seamless Size | 15 NB to 150 NB | 1/2" OD - 12" OD |
| Welded Size | 1/2" OD - 12" OD | 25 SWG - 10 SWG |
| Length | Up to 30 meters, Single/Double Random, Custom Cut |
| Schedules | 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH |
| End Finish | Plain, Beveled, Threaded, Burr-free, Polished |
| Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Titanium |
|---|---|---|---|---|---|
| 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | Balance |
| Grade | Density | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|
| Grade 2 (Annealed) | 4.507 kg/m³ | 345 MPa | 275-450 MPa | 20% |
| Grade 5 (Ti-6Al-4V) | 4.43 g/cm³ | 950 MPa | 880 MPa | 14% |
Products are packed using standard seaworthy export methods, including waterproof bags, wooden cases, steel strip bundling, or plastic bags as required.
