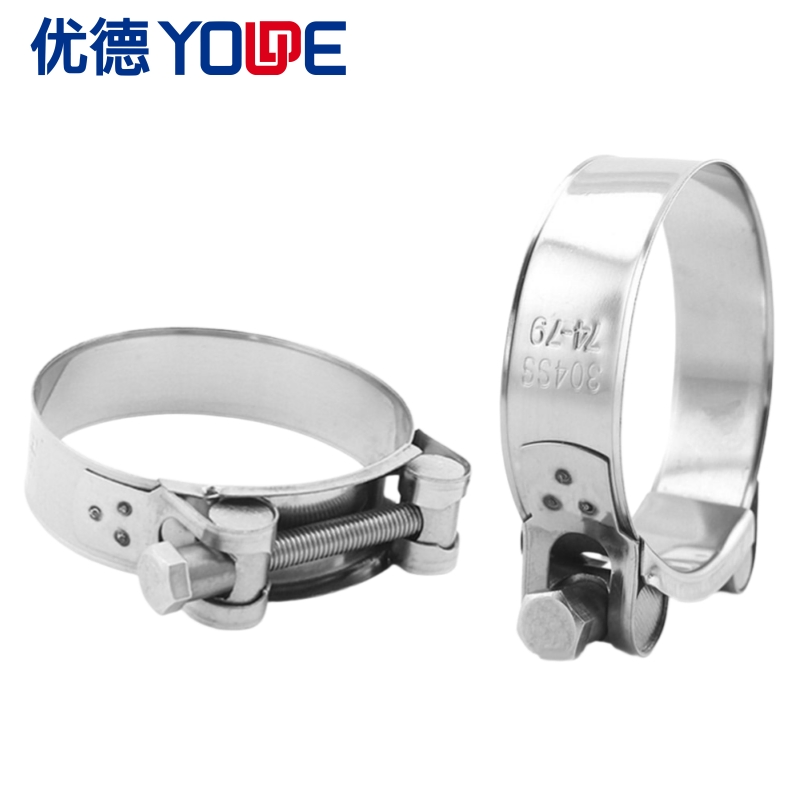

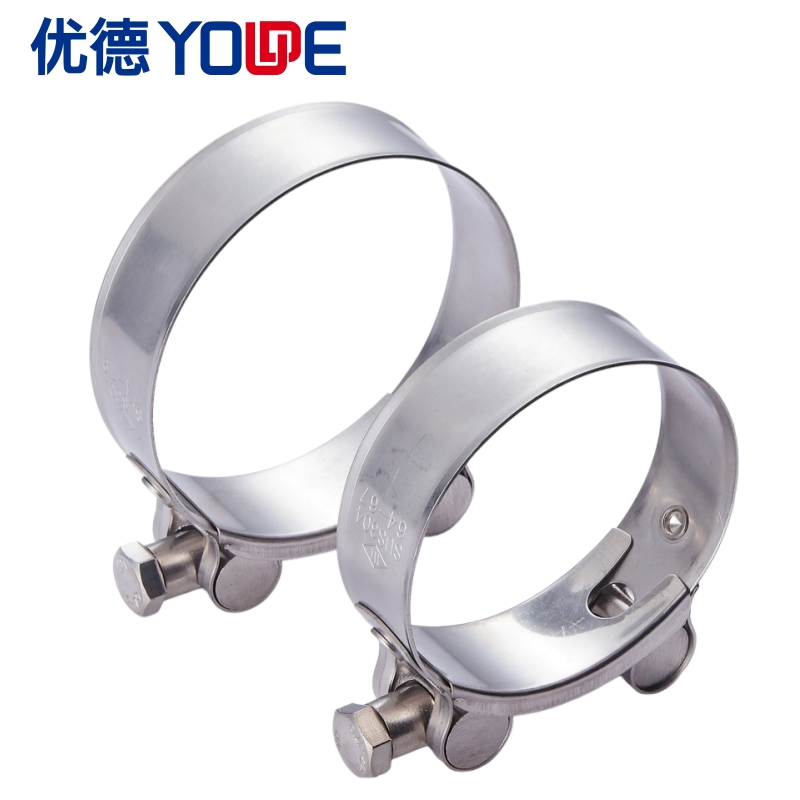

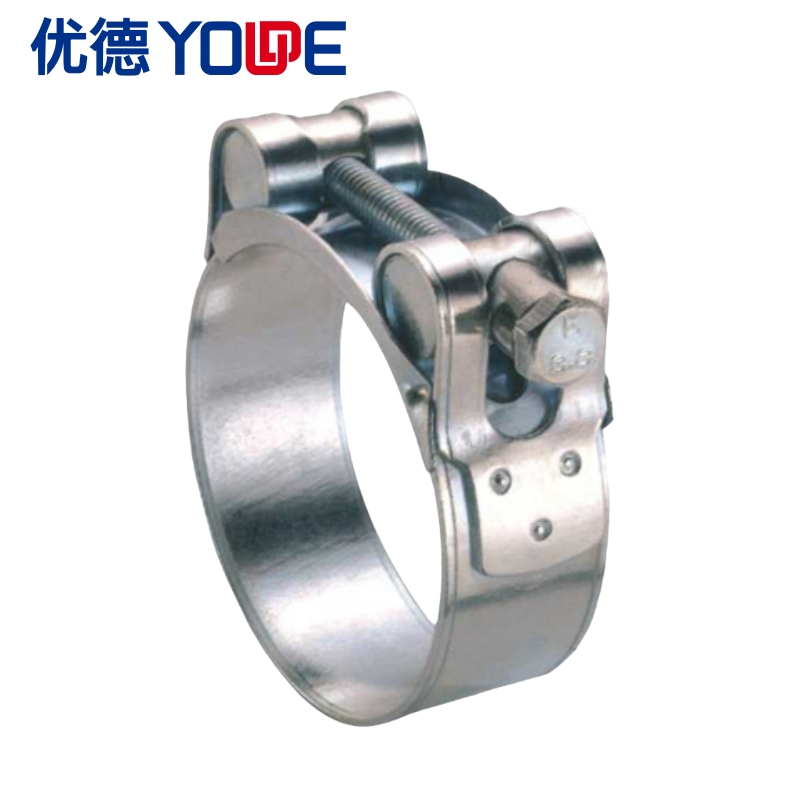

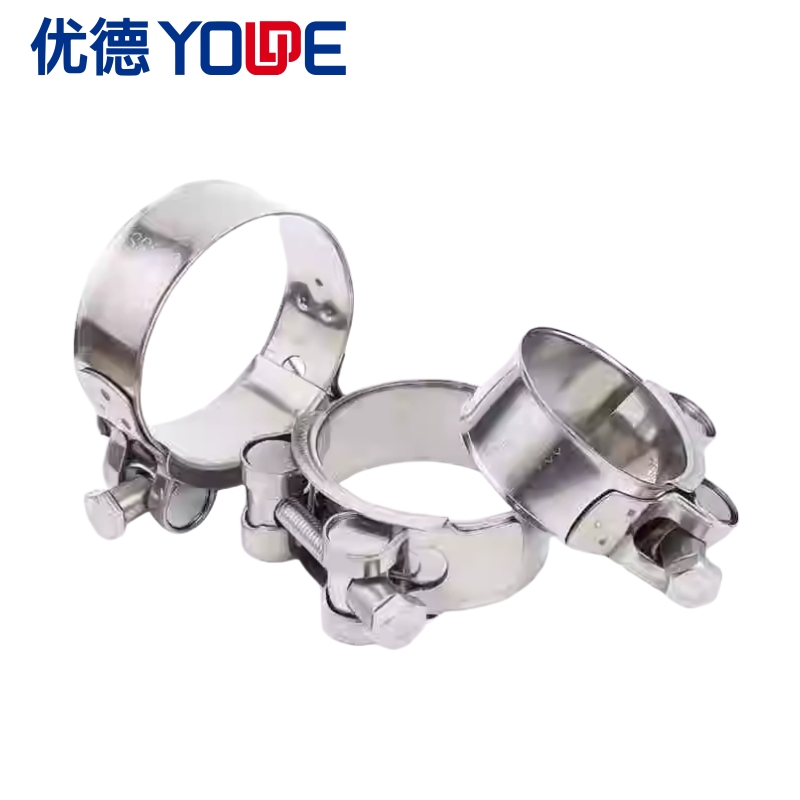

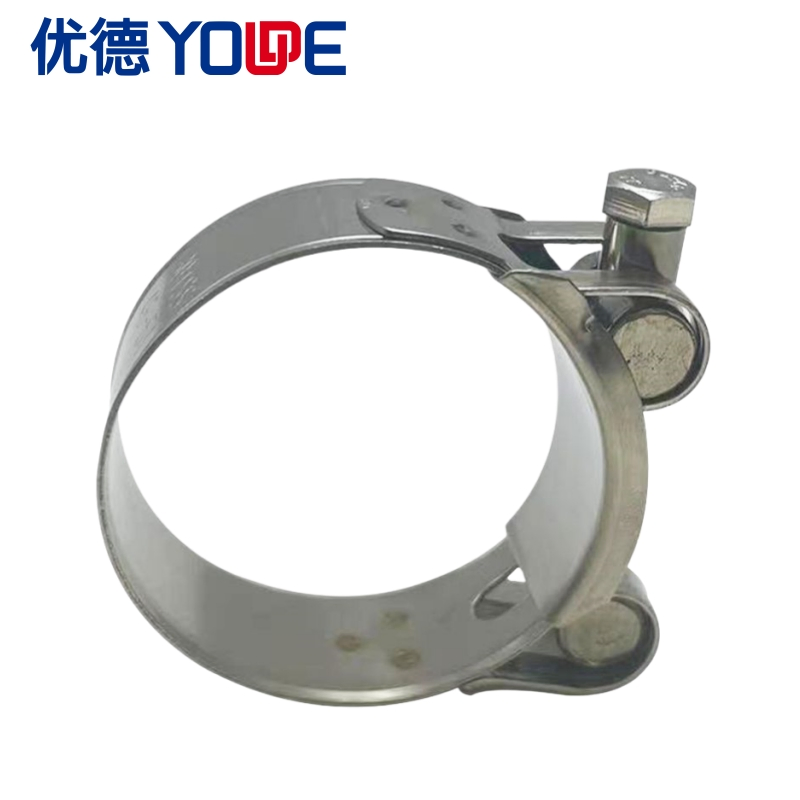

Manufacturer Double Piple Clamps Metal Stainless Steel Spring Hose Clamp Type Exhaust Heavy Duty Hose Clamps

1 / 5

Manufacturer Double Piple Clamps Metal Stainless Steel Spring Hose Clamp Type Exhaust Heavy Duty Hose Clamps

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

UDHDW2

Surface Treatment

Galvanized Sheet

Head Type

Round

Product Name

Heavy Duty Hose Clamp

Usage

Plumbing, Automotive, Irrigation, Household

Band Width

18, 20, 22, 24, 26

Productivity

10000PCS/Day

Thickness

0.6mm, 0.8, 1.0

Package Size

38.00cm * 27.00cm * 21.00cm

Package Gross Weight

10.000kg

HS Code

73269090

Production Capacity

10000PCS/Day

Product Description

Heavy duty Hose Clamp, also called robust clamp or power clamp, is designed for high-strength sealing applications.

Structure: Band, plate, two axles, and screw.
Surface treatment: Zinc plated for enhanced durability.
Color options: Silver, yellow.
Screw grade: High-quality 8.8 grade.
Application: Widely used in motor vehicles, petrochemicals, industry, agriculture, auto pipe, cooling pipes etc.
Material Options: Available in W1, W2, W4, W5 grades.

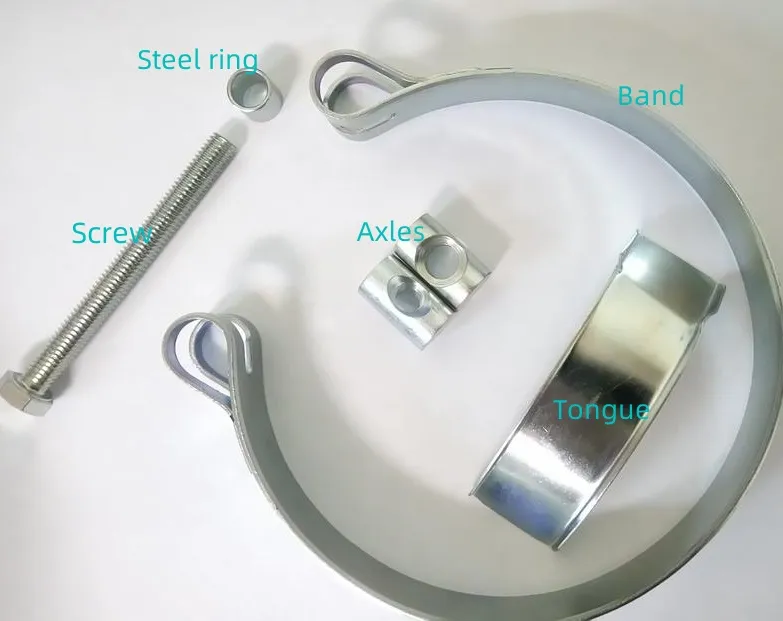

Material	Band	Tongue	Axles	Screw	Steel ring
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	Zinc plated steel	Zinc plated steel
W2	AISI 201SS	Zinc plated steel	Zinc plated steel	Zinc plated steel	Zinc plated steel
W4	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS
W5	AISI 316SS	AISI 316SS	AISI 316SS	AISI 316SS	AISI 316SS

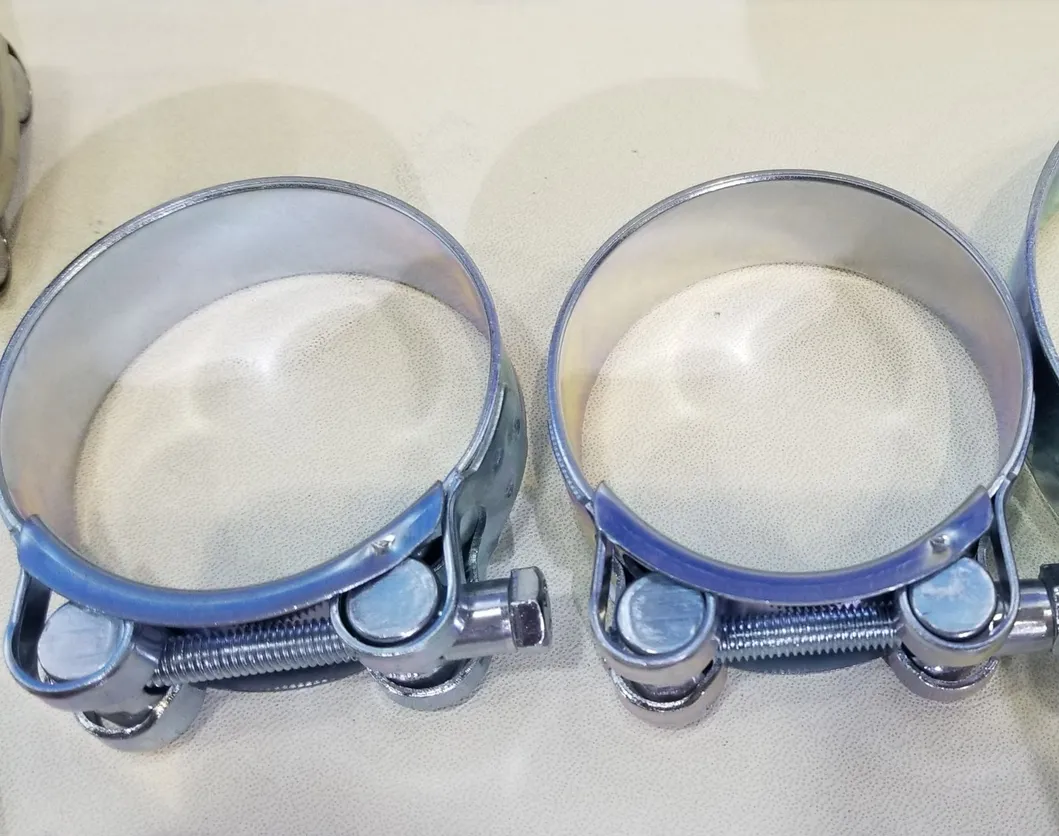

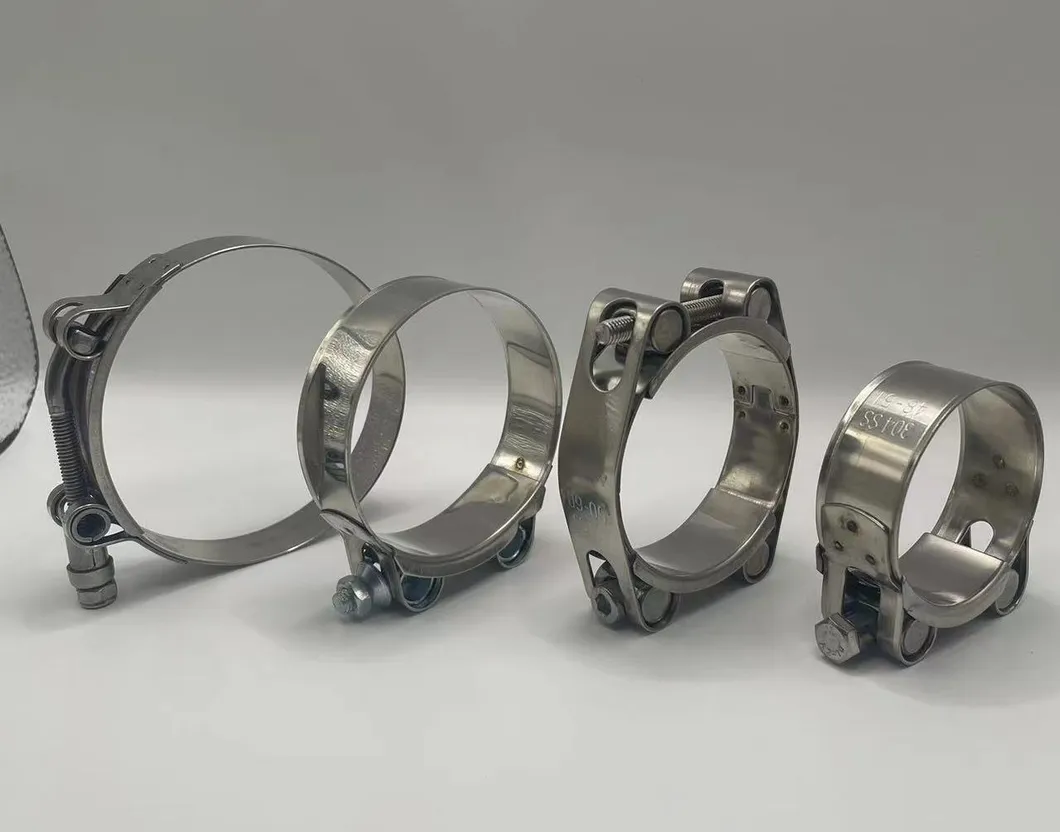

Detailed Photos

Why Choose Our Clamps?

Full experience in manufacturing high-quality industrial components.
Strict material testing including thickness, chemical composition, and hardness.
Smooth edges with no burrs, ensuring easy and safe installation.
Superior antirust and wear resistance properties.
304SS options provide strong oxidation resistance in humid environments.
Wide range of customizable sizes to meet unique project needs.

Product Parameters

Width (mm)	Product Code	Clamping Range (mm)	Clamping Range (in)	Thickness (mm)	Pcs/Box
18	GEM SS 17-19/18	17-19	11/16-3/4	0.6	200
18	GEM SS 20-22/18	20-22	13/16-7/8	0.6	200
20	GEM SS 29-31/20	29-31	1 1/8-1 1/4	0.6-0.8	200
22	GEM SS 44-47/22	44-47	1 3/4-1 7/8	0.8-1.2	100
24	GEM SS 68-73/24	68-73	2 11/16-2 7/8	0.8-1.5	100
26	GEM SS 131-139/26	131-139	5 1/8-5 1/2	1.0-1.7	50

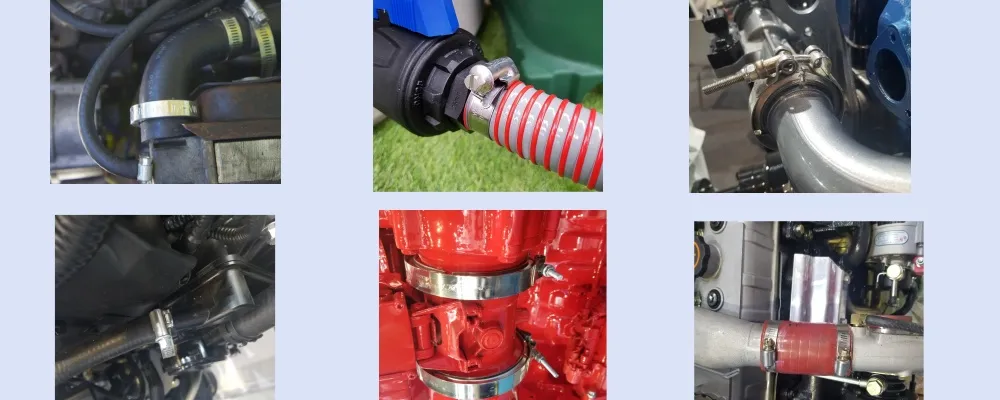

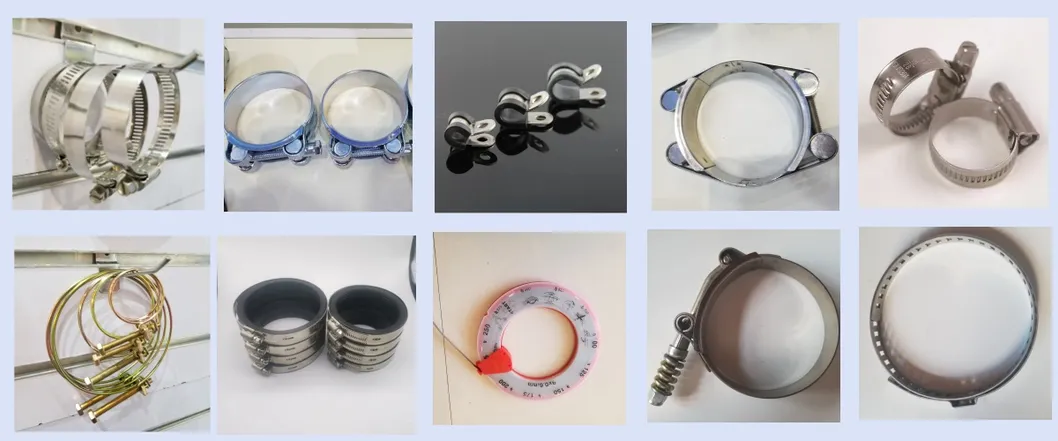

Main Products & Application

Package & Global Presence

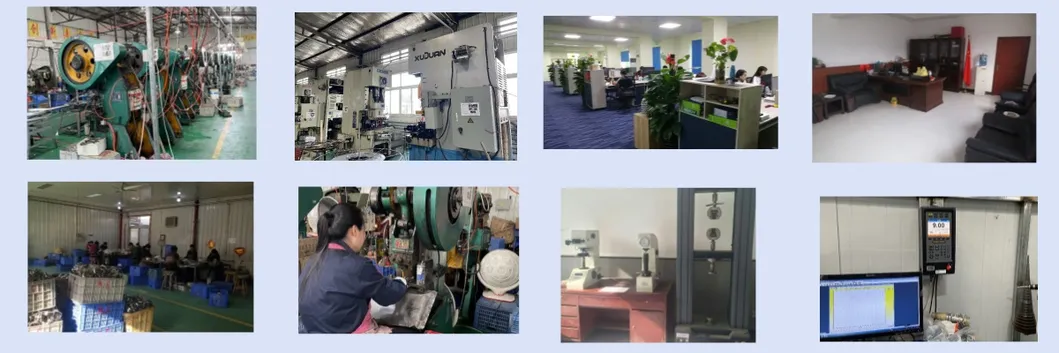

Professional Manufacturing

As a leading supplier of hose clamps and stamping metal parts, we bring over 15 years of design, production, and exporting experience. Our engineering team specializes in understanding unique industrial requirements, offering both standard and customized solutions.

By optimizing production processes and centralizing procurement, we achieve significant cost savings without compromising product quality, ensuring our customers receive the highest cost-performance ratio. We provide comprehensive one-stop services, from technical support to after-sales care.

Frequently Asked Questions

1. What makes these "Heavy Duty" compared to standard clamps? These clamps feature a robust structure with plates, two axles, and high-grade 8.8 screws, providing much higher tightening torque and sealing pressure than standard worm gear clamps.

2. Which material grade should I choose (W1 to W5)? W1 is fully zinc-plated steel for general use. W2 uses a stainless steel band with steel screws. W4 (304SS) and W5 (316SS) are full stainless steel, ideal for highly corrosive or marine environments.

3. Can the band width and thickness be customized? Yes, we offer standard widths from 18mm to 26mm and various thicknesses. We can also manufacture customized dimensions based on your specific technical requirements.

4. What are the typical applications for these clamps? They are widely used in heavy-duty vehicles, cooling systems, industrial irrigation, petrochemical piping, and any application requiring a high-strength, leak-proof seal.

5. Are the clamps safe to handle during installation? Absolutely. Our production process includes a deburring stage to ensure all edges are smooth, preventing injury to the installer or damage to the hose.

6. What is your production capacity for large orders? Our current productivity is approximately 10,000 pieces per day, allowing us to handle both small batch needs and large-scale industrial orders efficiently.
