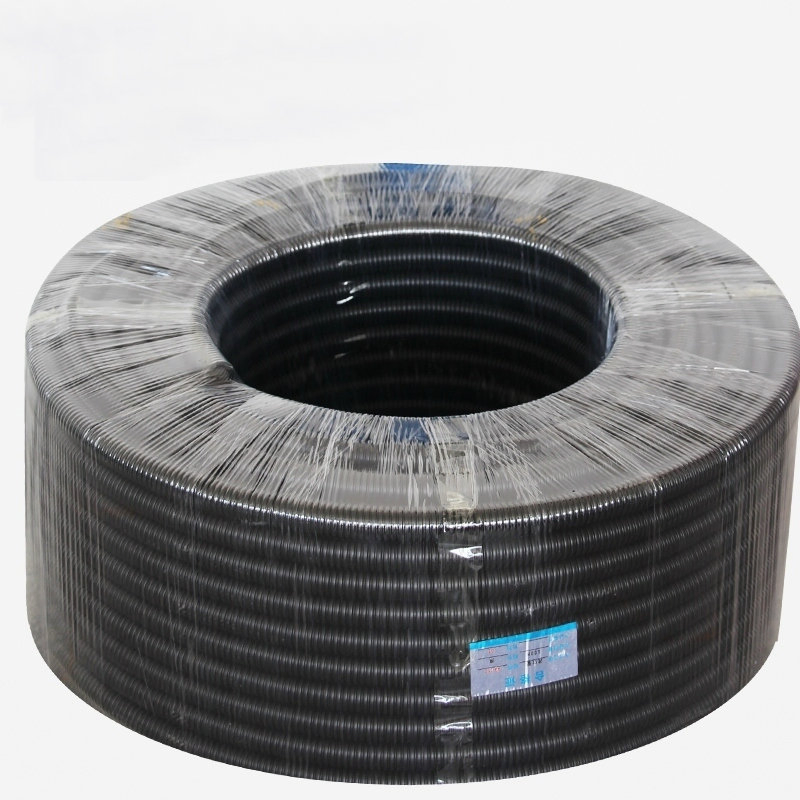

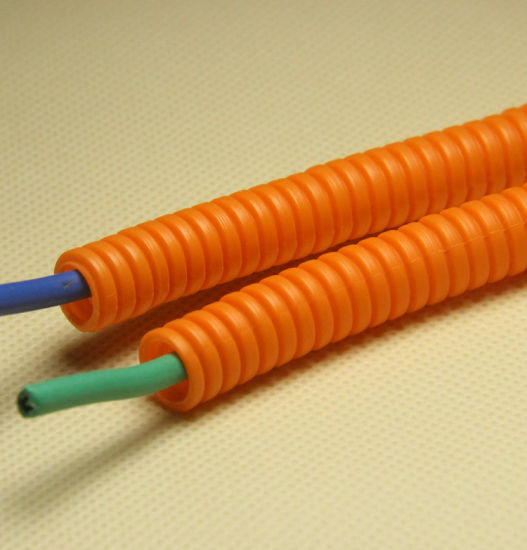

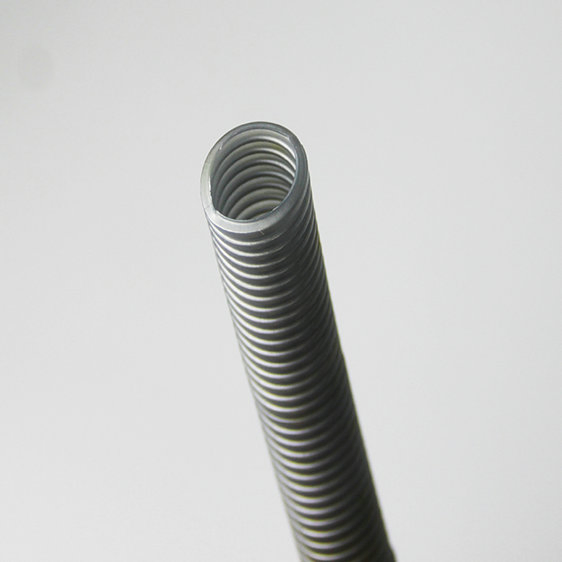

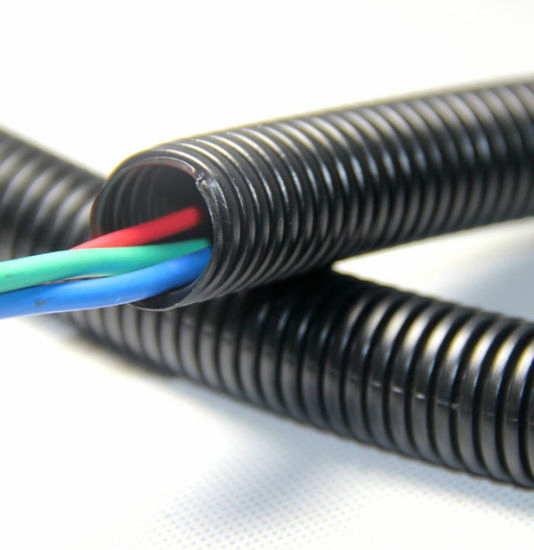

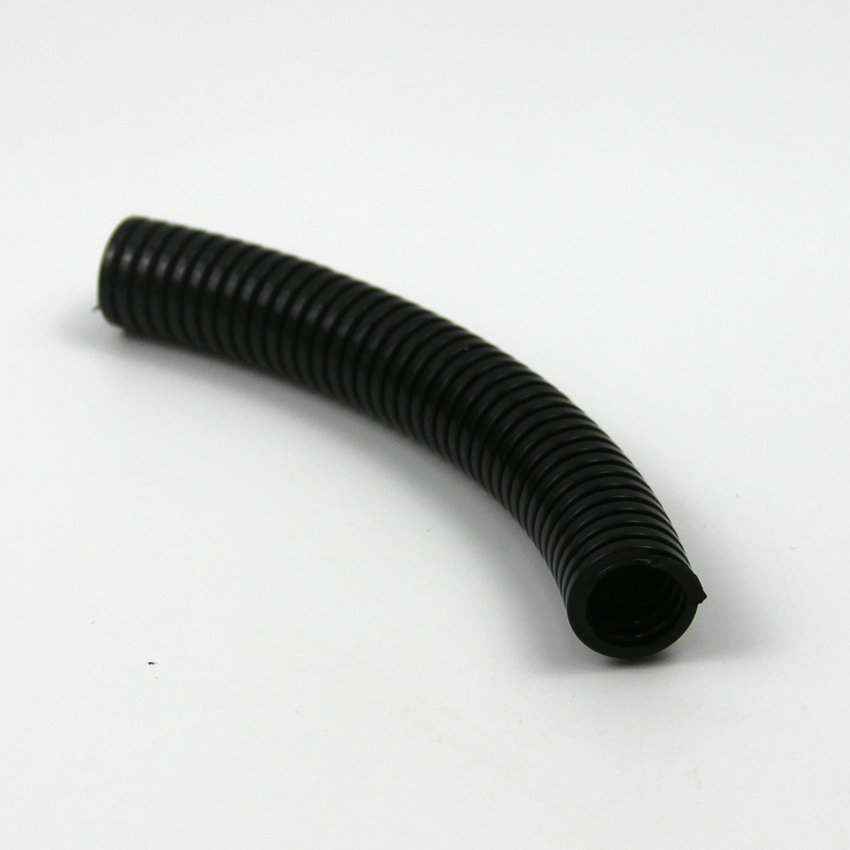

RoHS Plastic Split Flexible Corrugated Electrical Conduit Pipes
RoHS Plastic Split Flexible Corrugated Electrical Conduit Pipes
RoHS Plastic Split Flexible Corrugated Electrical Conduit Pipes
RoHS Plastic Split Flexible Corrugated Electrical Conduit Pipes
RoHS Plastic Split Flexible Corrugated Electrical Conduit Pipes
1 / 5
RoHS Plastic Split Flexible Corrugated Electrical Conduit Pipes
RoHS Plastic Split Flexible Corrugated Electrical Conduit Pipes
RoHS Plastic Split Flexible Corrugated Electrical Conduit Pipes
RoHS Plastic Split Flexible Corrugated Electrical Conduit Pipes
RoHS Plastic Split Flexible Corrugated Electrical Conduit Pipes

RoHS Plastic Split Flexible Corrugated Electrical Conduit Pipes

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info
Model NO.
CFC
Flexibility
Flexible
Material
Plastic
Maximum Voltage
<10KV
Thermal Rating
E 120
Style
Flexible Plastic Split Wire Loom Tubing
Available Size
4.5mm ID to 48mm ID
Standard Color
Black
Free Sample
Yes
Available Colors
Black, White, Blue, Red, etc
Certification
ISO9001, RoHS
Production Capacity
3,000,000 M/Month
Product Description

RoHS Plastic split Flexible corrugated electrical conduit pipes offers you wide range technical properties for your cable and wire management applications against not only mechanical damage but also the influences of UV radiation, weathering and chemicals.

The flexible body allows for the cables in the corner and elbow. We also supply the split style for easy installation and removal.

Flexible corrugated electrical conduit pipes

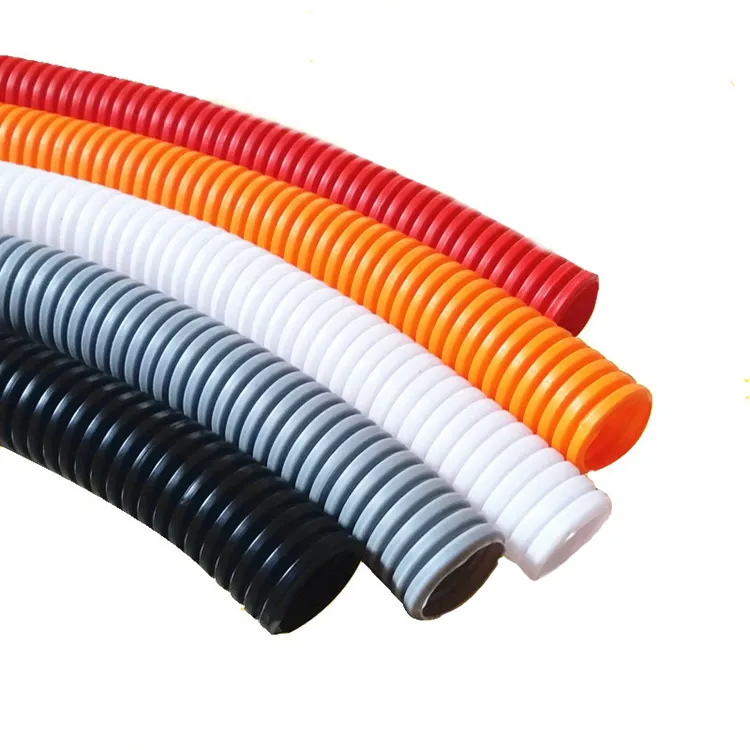

Plastic Split Conduit
◈Highly abrasion resistance
◈Resist acids
◈Solvents and fuels resistant
◈Resistant to UL radiation
◈Insulative and protective, Against mechanical damage
◈Flexibility, Light weight
◈Easy to install and remove
◈Split style & Not split style
Product application

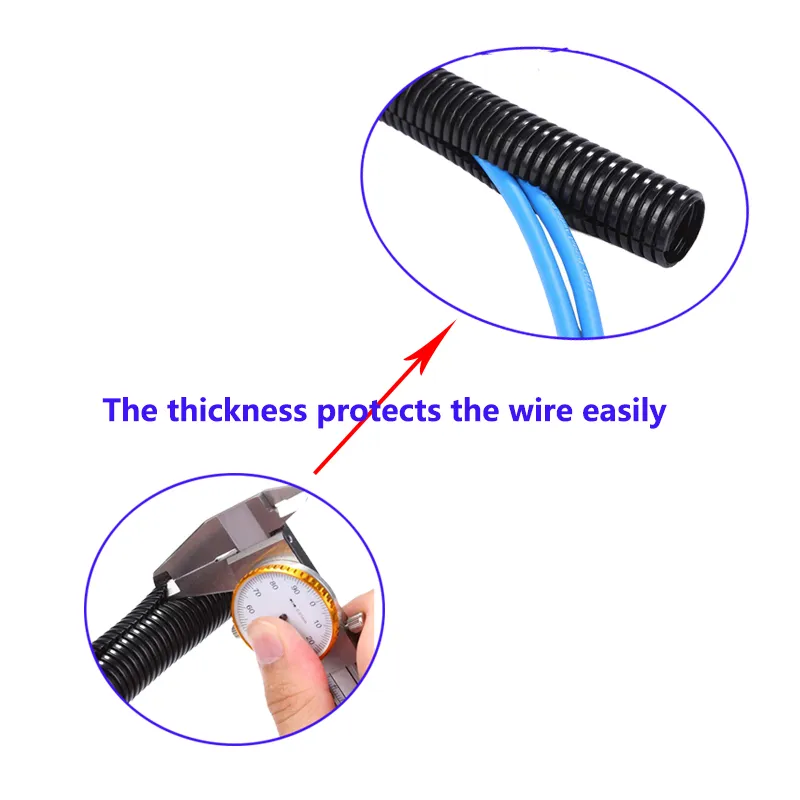

Corrugated tubing details
Product Parameters
✔Material: PE/PP/PA
✔Operating range: PE: -40ºC to +90ºC; PA: -40ºC to +130ºC; PP: -30ºC to +110ºC
✔Standard color: Black and Grey
✔Certification: ROHS
Part No I.D*O.D (d*D) Bending Radius Packing (L)
CFC-PP/PA-74.5mm*7.0mm5.0100m/roll
CFC-PP/PA-8.55.5mm*8.5mm8.0100m/roll
CFC-PP/PA-107.0mm*10.0mm10.0100m/roll
CFC-PP/PA-128.5mm*11.5mm15.0100m/roll
CFC-PP/PA-1310.0mm*13.0mm20.0100m/roll
CFC-PP/PA-15.812.0mm*15.8mm30.0100m/roll
CFC-PP/PA-18.514.3mm*18.5mm40.0100m/roll
CFC-PP/PA-21.217.0mm*21.20mm45.0100m/roll
CFC-PP/PA-2521.0mm*25.0mm50.0100m/roll
CFC-PP/PA-28.523.0mm*28.5mm55.0100m/roll
CFC-PP/PA-34.529.0mm*34.50mm60.050m/roll
CFC-PP/PA42.536.0mm*42.5mm70.025m/roll
CFC-PP/PA54.548.0mm*54.5mm80.025m/roll
Application & Installation
➤Protecting wires and cables harness in automotive, equipment, railway etc.
➤Used for protecting the hydraulic hoses.
➤Used in the fields of electrics communication, automobile for connection insulation and rust-proof of metal product.

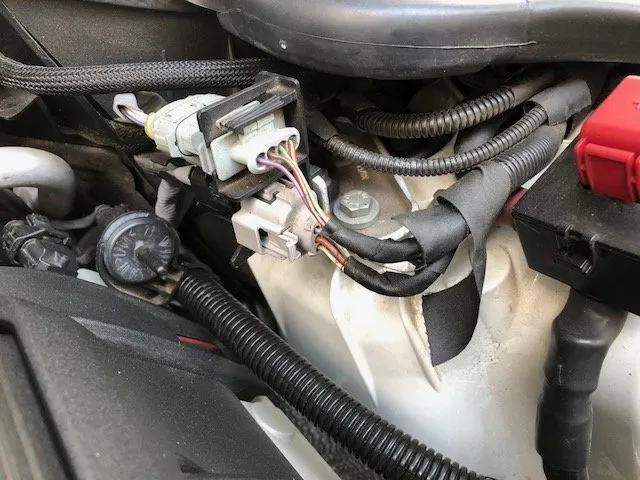

Installation instance 1

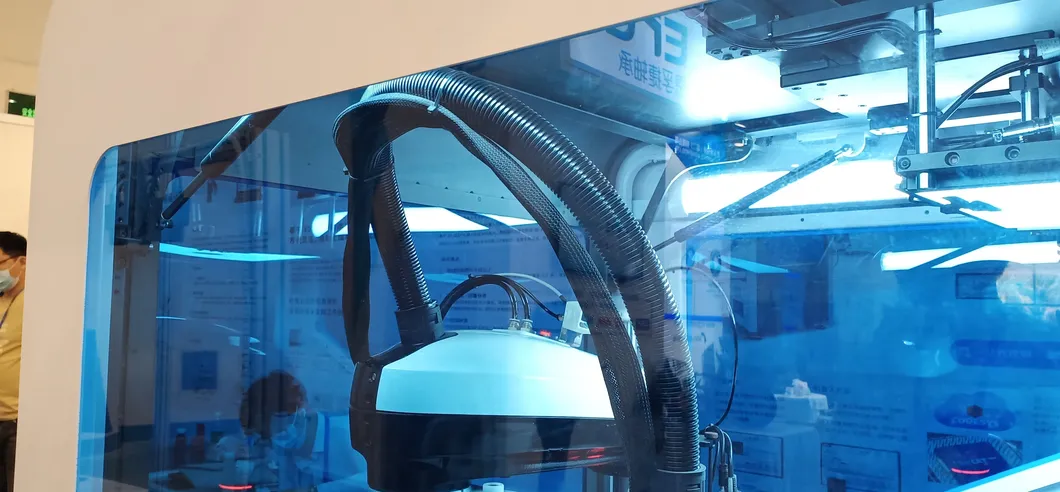

Installation instance 2
Detailed Photos

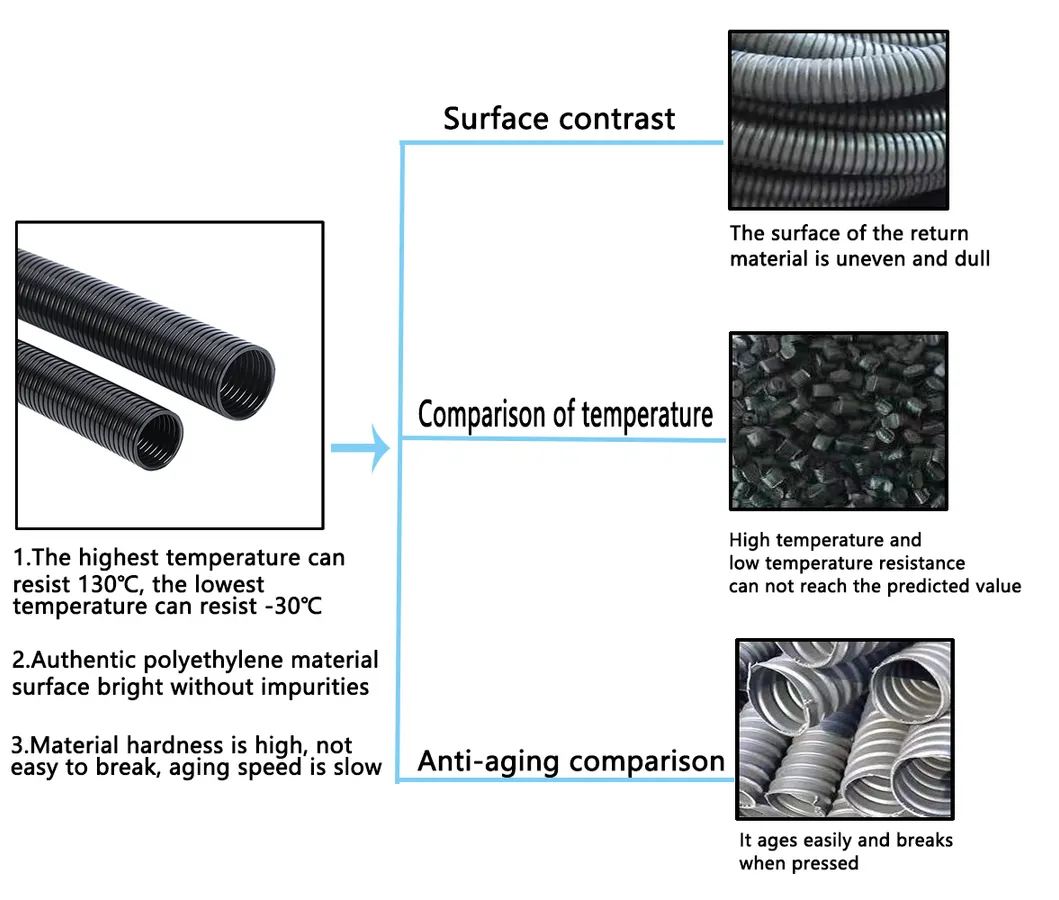

Close up photo 1

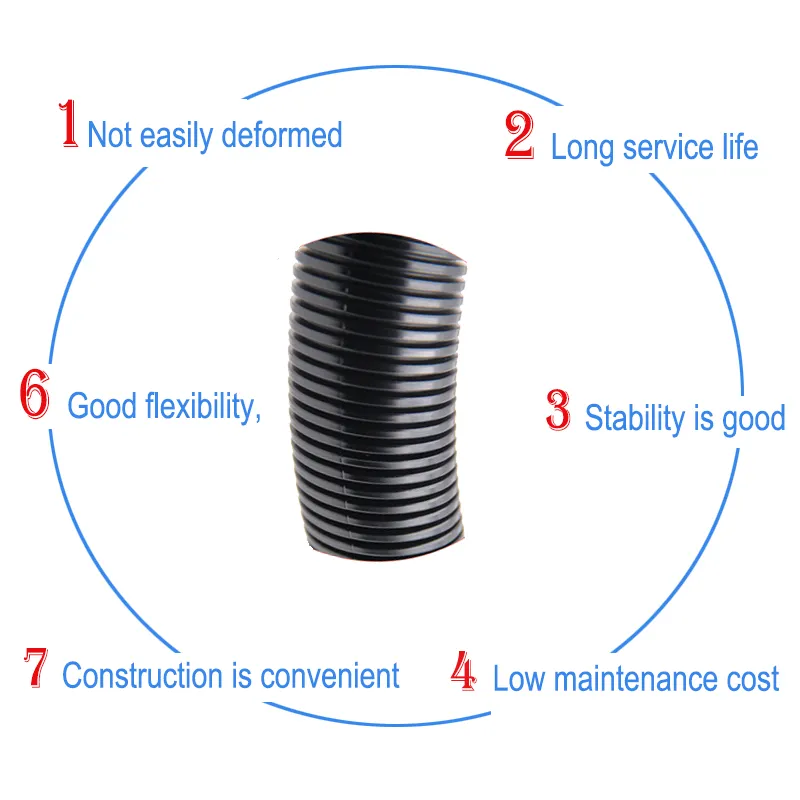

Close up photo 2
Close up photo 3
Production Capability

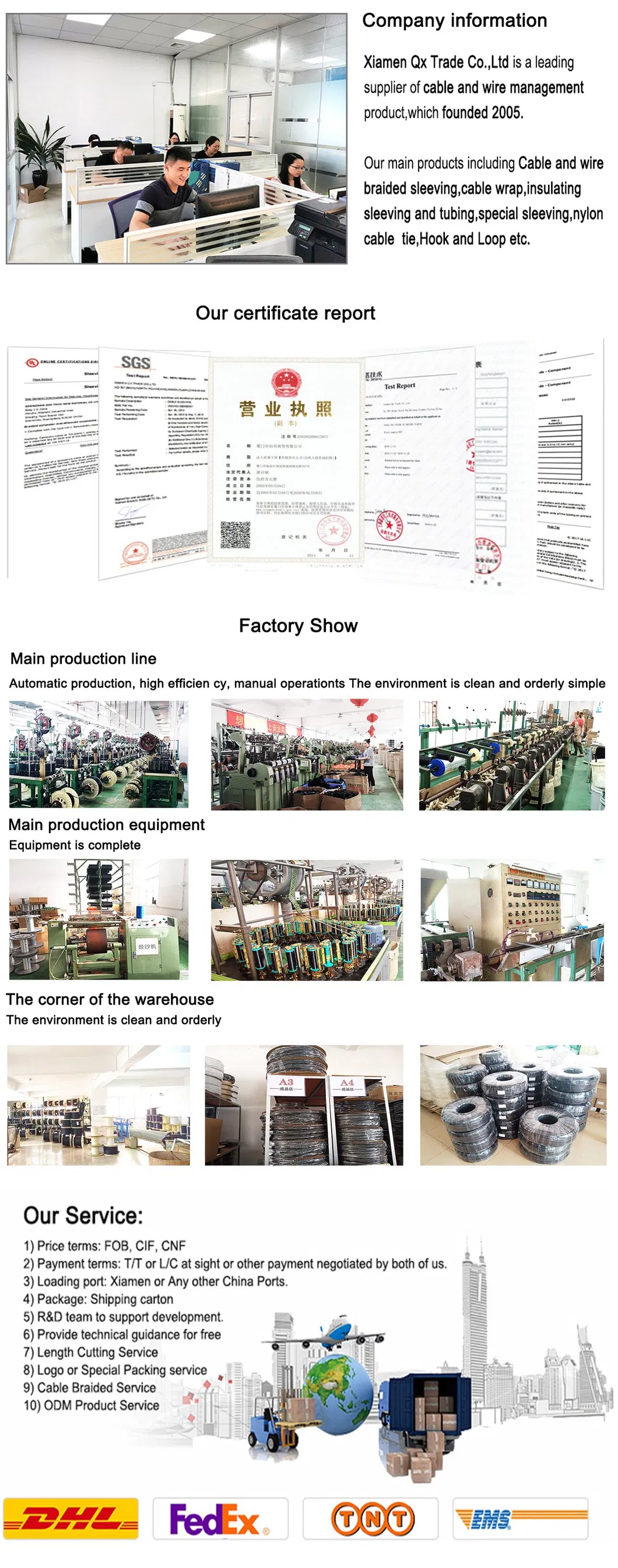

Factory and Production line
Frequently Asked Questions
?What materials are available for these conduit pipes?
We offer conduit pipes in PE (Polyethylene), PP (Polypropylene), and PA (Polyamide/Nylon) to suit different environmental requirements.
?What is the temperature resistance of the PP material?
The PP (Polypropylene) conduit has an operating temperature range from -30ºC to +110ºC.
?Are these tubes resistant to chemicals and UV?
Yes, our conduit pipes are designed to resist acids, solvents, fuels, and UV radiation, making them suitable for harsh outdoor and industrial environments.
?What is the difference between split and non-split styles?
Split style allows for easy installation over existing wiring without disconnecting them, while non-split style provides a continuous seal for maximum protection.
?What sizes can I order?
Standard internal diameters (I.D) range from 4.5mm up to 48mm. Custom cutting services are also available upon request.
?Are these products certified for international standards?
Yes, our conduit pipes are RoHS compliant and manufactured under ISO9001 certified quality management systems.
